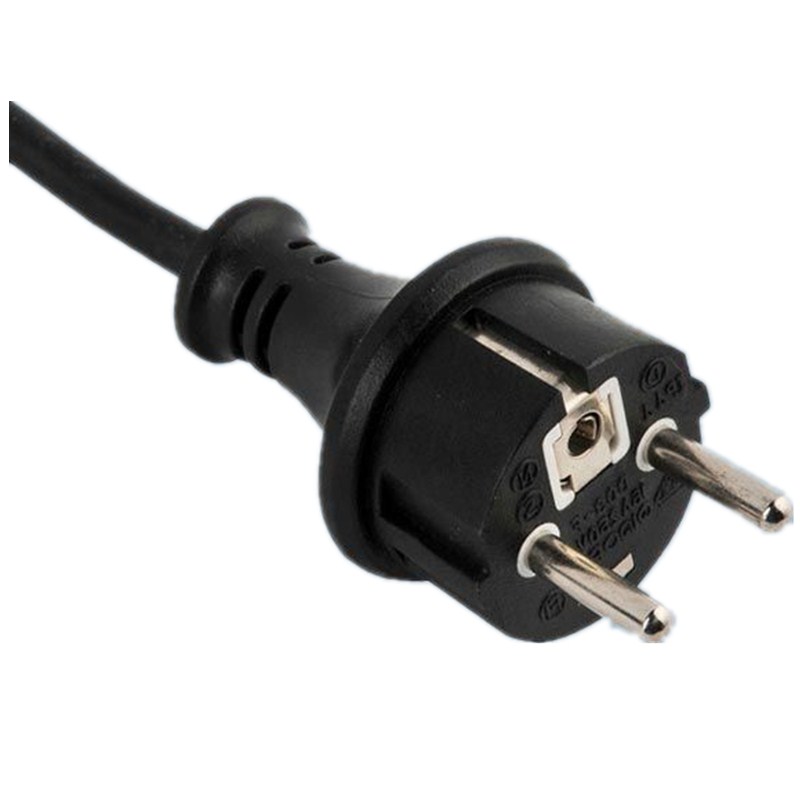

CEE 7/7 Schuko German 3 Conductor IP44 waterproof plug power cord with VDE certification Rated up to 16A 250V Built to DIN EN 60320-1(VDE 0625-1):2008-05;EN 60320-1:2001+A1:2007 standards and designed for European outdoor power supply cord applications. All of our European AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China premier power cable manufacturer.

Specifications

Plug Standard	CEE7/7 IP44 Plug
Maximum Current rating	16A
Maximum Voltage	250V
Number of Poles and Wires	2 poles, 3 wires
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Customer color available
Cable length	Customer length available
Temperature Rating	minus 60C though plus 90C
Approvals	Europe VDE,KEMA,OVE,N,S,FI,D,CEBECc
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ	1000pcs
Samples	Free samples Available

Available Wire Styles

Cord Type	Electrical Rating (Amps/Volts)
H03VV-F 3G 0,5 mm2 max.2m H03VV-F 3G 0,75 mm2 H05VV-F 3G 0,75 mm2 H05VV-F 3G 1,0 mm2 H05VV-F 3G 1,5 mm2 H05RR-F 3G 0,75 mm2 H05RR-F 3G 1,0 mm2 H05RR-F 3G 1,5 mm2 H05RN-F 3G 0,75 mm2 H05RN-F 3G 1,0 mm2 H07RN-F 3G 1,0 mm2 H07RN-F 3G 1,5 mm2 H03RT-H 3G 0,75 mm2 H03RT-H 3G 1,0 mm2 H05V2V2-F 3G 0,75 mm2 H05V2V2-F 3G 1,0 mm	16/250

JT003-F CEE7/7 IP44 Plug Drawing
