Specifications
|
Plug Standard
|

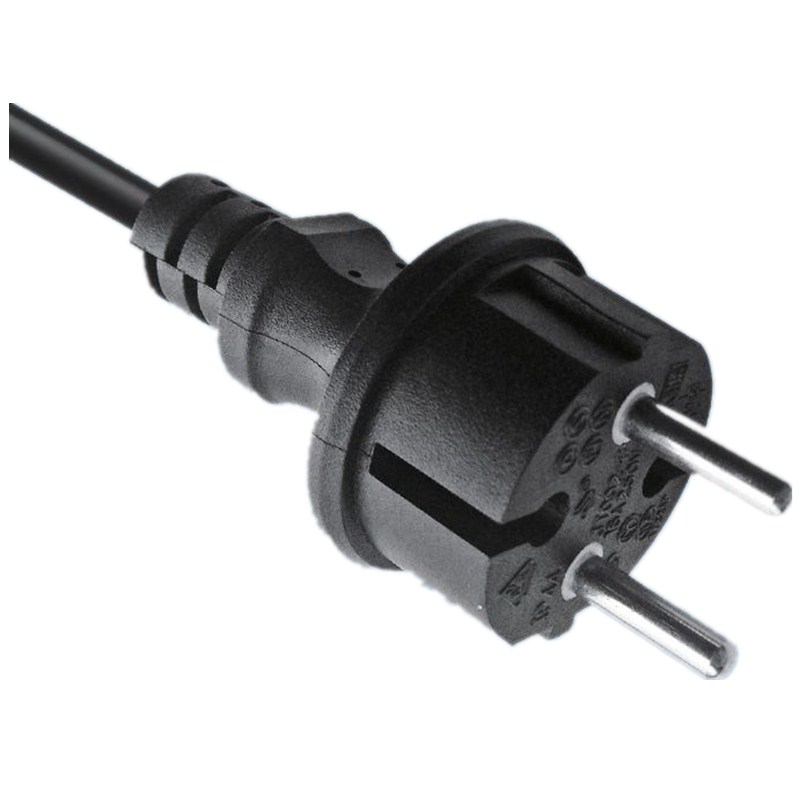

CEE7/17 IP44 plug
|
|
Maximum Current rating
|
16A
|
|
Maximum Voltage
|
250V
|
|
Number of Poles and Wires
|
2 poles, 2 wires
|
|
Outer Mold Material
|
50P PVC
|
|
Blade Material
|
Nickel coated Brass
|
|
Color
|
Custom color available
|
|
Cable length
|
Custom length available
|
|
Temperature Rating
|
minus 60C though plus 90C
|
|
Approvals
|
Europe VDE,KEMA,OVE,N,S,FI,D,CEBECc
|
|
Environmental Certifications
|
RoHS, REACH
|
|
Testing
|
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
|
|
MOQ
|
2000pcs
|
|
Samples
|
Free samples Available
|
Available Wire Styles
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
H03VVH2-F 2x0,5 mm2 max.2m
H03VVH2-F 2x0,75 mm2
H05VVH2-F 2x0,75 mm2 H05VVH2-F 2x1.0 mm2
H03VV-F 2x0,5 mm2 max.2m H03VV-F 2x0,75 mm2
H05VV-F 2x0,75 mm2 H05VV-F 2x1,0 mm2 H05VV-F 2x1,5 mm2
H05RR-F 2x0,75 mm2 H05RR-F 2x1,0 mm2 H05RR-F 2x1,5 mm2
H05RN-F 2x0,75 mm2 H05RN-F 2x1,0 mm2
H07RN-F 2x1,0 mm2 H07RN-F 2x1,5 mm2
H03RT-H 2x0,75 mm2 H03RT-H 2x1,0 mm2
H05V2V2-F 2x0,75 mm2 H05V2V2-F 2x1,0 mm H05V2V2-F 2x1,5 mm
H05V2V2H2-F 2x0,75mm
|
16/250
|
CEE7/17 IP44 Plug Drawing
|
