Specifications
|
Plug Standard
|

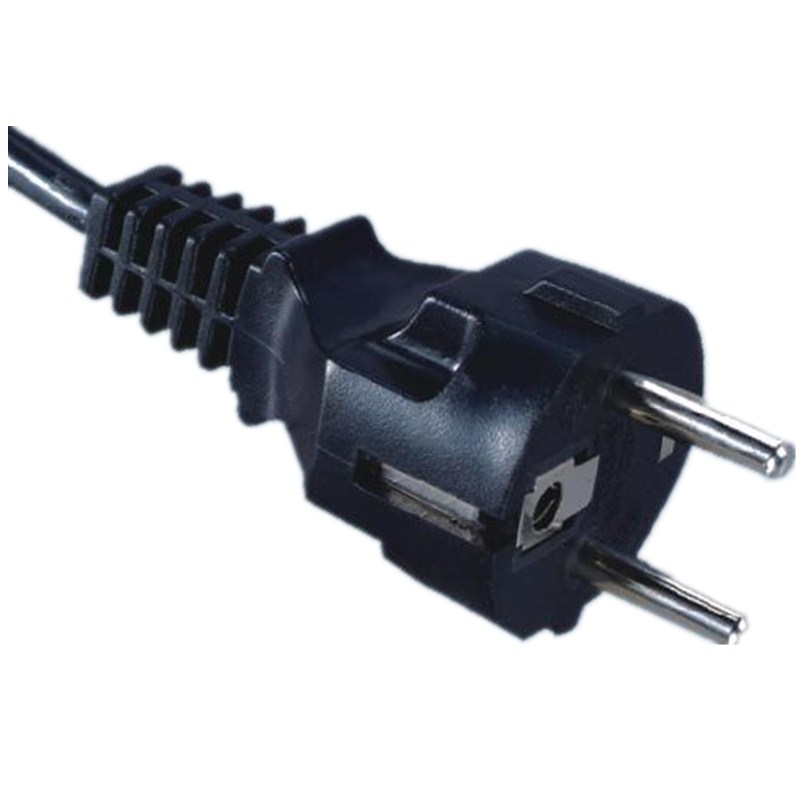

CEE7/7 Straight 3P IP20 Plug
|
|
Maximum Current rating
|
16A
|
|
Maximum Voltage
|
250V
|
|
Number of Poles and Wires
|
2 poles, 3 wires
|
|
Outer Mold Material
|
50P PVC
|
|
Blade Material
|
Nickel coated Brass
|
|
Color
|
Custom color available
|
|
Cable length
|
Custom length available
|
|
Temperature Rating
|
minus 60C though plus 90C
|
|
Approvals
|
CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE
|
|
Environmental Certifications
|
RoHS, REACH
|
|
Testing
|
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
|
|
MOQ
|
1000pcs
|
|
Samples
|
Free samples Available
|
Available Opposite End Connectors
|
Standard
|
Part Number
|
IEC C13
|
QT3 (IEC C13) Europe
|
|
IEC C5
|
JT-ST2B(IEC C5) Europe
|
|
IEC C15
|
ST3-H (IEC C15) Europe
|
|
IEC C19
|
ST6(IEC C19) Europe
|
Available Wire Styles
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
H03VV-F 3G 0,5 mm2 (max. 2 m)
H03VV-F 3G 0,75 mm2
H05VV-F 3G 0,75 mm2 H05VV-F 3G 1,0 mm2 H05VV-F 3G 1,5 mm2
H05RR-F 3G 0,75 mm2 H05RR-F 3G 1,0 mm2 H05RR-F 3G 1,5 mm2
H05RN-F 3G 0,75 mm2 H05RN-F 3G 1,0 mm2
H07RN-F 3G 1,0 mm2 H07RN-F 3G 1,5 mm2
H03RT-H 3G 0,75 mm2 H03RT-H 3G 1,0 mm2
H05V2V2-F 3G 0,75 mm2
H05V2V2-F 3G 1,0 mm
|
16/250
|
Plug Drawing
|
