Specifications
|
Connector Standard
|

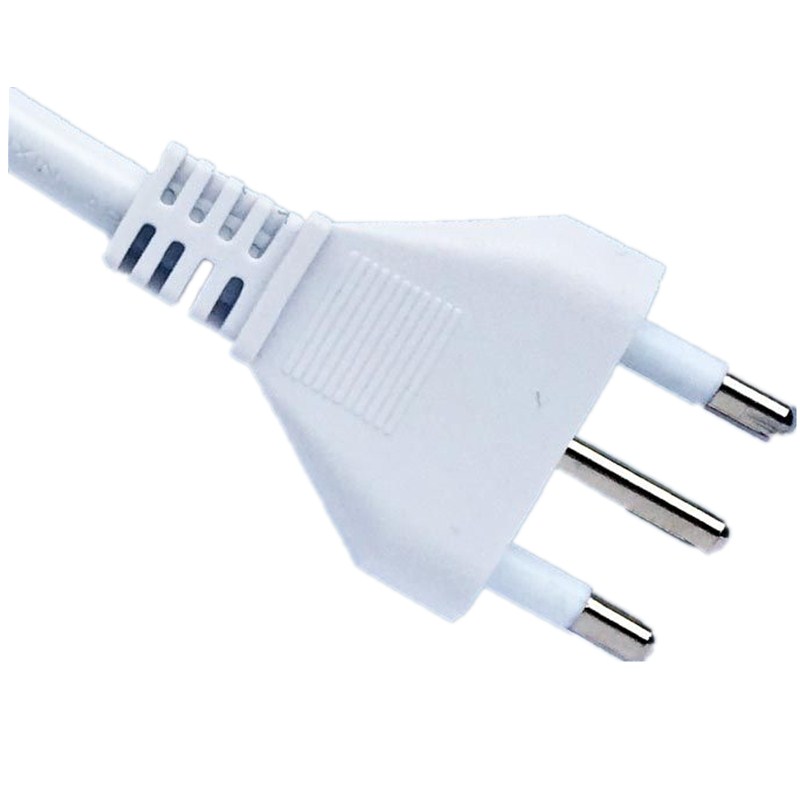

Italy 2P+T plug
|
|
Maximum Current rating
|
10A
|
|
Maximum Voltage
|
250V
|
|
Number of Poles and Wires
|
2 poles, 3 wires
|
|
Outer Mold Material
|
50P PVC
|
|
Blade Material
|
Nickel coated Brass
|
|
Flamability Rating
|
UL 94V-0
|
|
Color
|
Custom color available
|
|
Cable length
|
Custom length available
|
|
Temperature Rating
|
minus 40C though plus 75C
|
|
Approvals
|
IMQ,VDE
|
|
Environmental Certifications
|
RoHS, REACH
|
|
Testing
|
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
|
|
MOQ
|
1000pcs
|
|
Samples
|
Free samples Available
|
Available Opposite End Connectors
|
Standard
|
Part Number
|
IEC C13
|
QT3 (IEC C13) Italy
|
|
IEC C5
|
JF-08 IEC 320 C5 Italy
|
|
IEC C15
|
ST3-H (IEC C15) Italy
|
|
IEC C19
|
ST6(IEC C19) Italy
|
Available Wire Styles
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
H03VV-F 3G0,5mm2 H03VV-F 3G0,75mm2
H05VV-F 3G0,75mm2 H05VV-F 3G1.0mm2
H05RN-F 3G0.75mm2 H05RN-F 3G1.0mm2
H03RT-H 3G0,75mm2 H03RT-H 3G1.0mm2
H05V2V2-F 3G0,75mm2 H05V2V2-F 3G1.0mm2
|
10/250Other Termination Options Ends Terminations
|
Italy CEI 23-16 power cord Drawing
|
