IEC 60320 C14 Plug To IEC 60320 C13 Ineternaitional Computer monitor type power cord plug / receptacle with VDE certification,Built to the IEC 60320 C14 plug and IEC C13 European connector for using in most countries appliance cord sets. Rated up to 13A 240V.The IEC 60320-C13 three prong power cord receptacle is often referred to as the "computer power cable" receptacle. These IEC C13 power cords are commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii. Available thre prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.

Specifications

Male Plug Standard	IEC 60320 C14
Female Receptacle Standard	IEC 60320 C13
Amperage	Up to 13A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	OEM length available
Safety approvals	VDE
Environmental Certifications	RoHS, REACH
Testing	100% are individually tested
Available Wire Styles	H03VV-F 3G 0,5 mm2 max.2m H03VV-F 3G 0,75 mm2 H05VV-F 3G 0,75 mm2 max.2m H05VV-F 3G 1,0 mm2 H05VV-F 3G 1,5 mm2 H05RR-F 3G 0,75 mm2 max.2m H05RR-F 3G 1,0 mm2 H05RR-F 3G 1,5 mm2 H05RN-F 3G 0,75 mm2 max.2m H05RN-F 3G 1,0 mm2 H07RN-F 3G 1,0 mm2 H07RN-F 3G 1,5 mm2 H03RT-H 3G 0,75 mm2 max.2m H03RT-H 3G 1,0 mm2 H05V2V2-F 3G 0,75 mm2 max.2m H05V2V2-F 3G 1,0 mm
MOQ	1000pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days

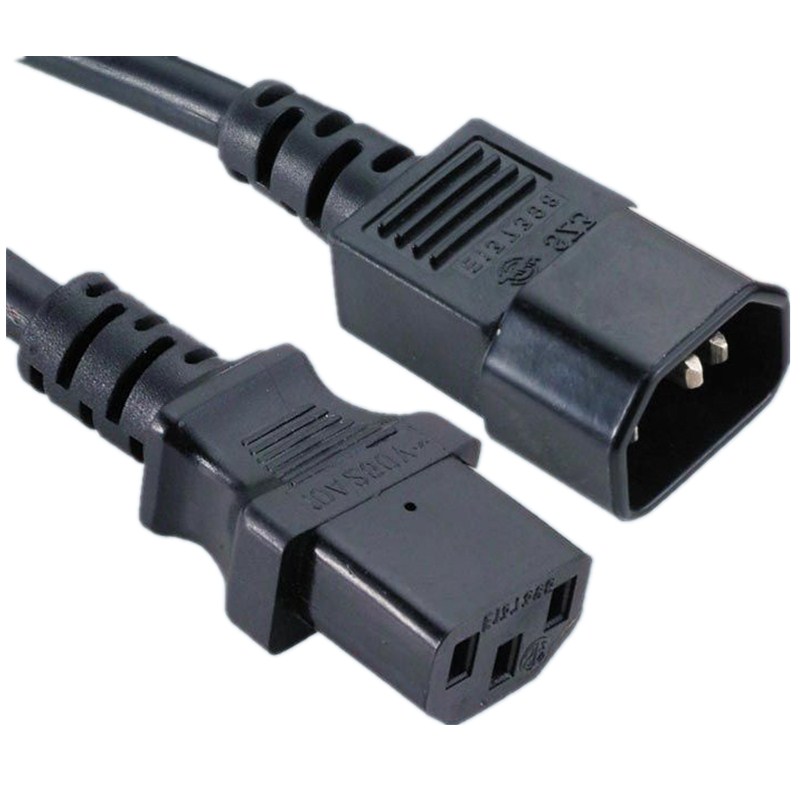

Cord Set Photo

This appliance cord most molded with 3x0.75mm2 or 3x1.00m2 PVC cable length from 0.5 meter to several meters.

Power Cord Drawing

This drawings just show the plug and receptacle dimension,the cable's length and color could be custom made.
