| European CEE7/7 Schuko Plug to IEC C13 Angle Power Cord |
|
|
|

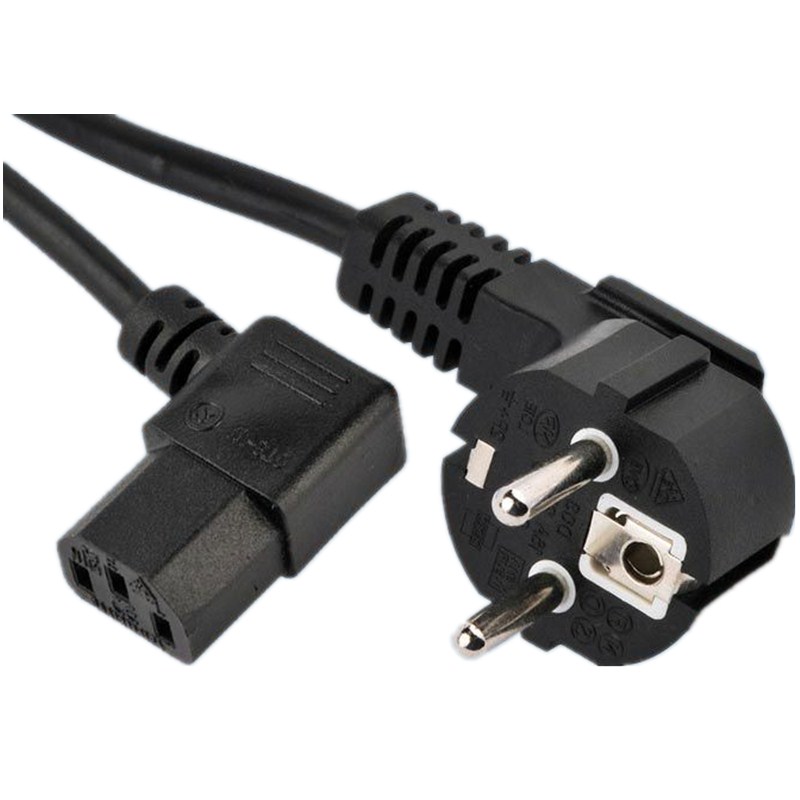

European CEE7/7 Schuko Plug to IEC C13 Right (Left) Angle Power Cord
CEE7/7 Schuko plug to IEC C13 right (left) angle Power Cord with VDE,RoHS and REACH approved molded with high quality.The IEC 60320-C13 three prong power receptacle is often referred to as the "computer power cable" receptacle. These right angled IEC 60320 C13 are same as Straight Angle and Left Angle versions commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems. Available three prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style. |
|
|
Specifications
|
Male Plug
|
Europe CEE7/7 Schuko
|
|
Female Receptacle
|
IEC60320 C13 right angle Europe
|
|
Amperage
|
Up to 10A
|
|
Voltage
|
Up to 250V AC
|
|
Outer Mold Material
|
50P PVC
|
|
Blade Material
|
Nickel coated Brass
|
|
Color
|
Custom color available
|
|
Cable Length
|
Custom length available
|
|
Certifications
|
CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE
|
|
Environmental Certifications
|
RoHS, REACH
|
|
Testing
|
100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
|
|
Available Wire Styles
|
H05VV-F 3G0H03VV-F 3G 0,5 mm2 max.2m
H03VV-F 3G 0,75 mm2
H05VV-F 3G 0,75 mm2 max.2m
H05VV-F 3G 1,0 mm2 H05VV-F 3G 1,5 mm2
H05RR-F 3G 0,75 mm2 max.2m
H05RR-F 3G 1,0 mm2 H05RR-F 3G 1,5 mm2
H05RN-F 3G 0,75 mm2 max.2m
H05RN-F 3G 1,0 mm2
H07RN-F 3G 1,0 mm2 H07RN-F 3G 1,5 mm2
H03RT-H 3G 0,75 mm2 max.2m
H03RT-H 3G 1,0 mm2
H05V2V2-F 3G 0,75 mm2 max.2m
H05V2V2-F 3G 1,0 mm
|
|
MOQ
|
1000pcs
|
|
Delviery lead date
|
15-20days
|
|
Pakcing
|
Export cartons
|
|
Samples
|
Free samples can be sent within 3 days
|
|
|
|
